strategies for effective stormwater management

Effective stormwater management is essential for maintaining the health and safety of urban environments. As cities expand and impermeable surfaces increase, managing stormwater runoff becomes critical to reduce flooding, prevent erosion, and protect water quality. Stormwater management strategies can be categorized into three main areas: source control, conveyance control, and end-of-pipe control. Each plays a crucial role in reducing the impact of runoff on local waterways and communities.

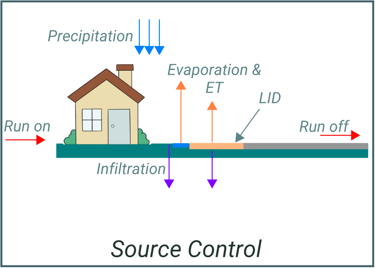

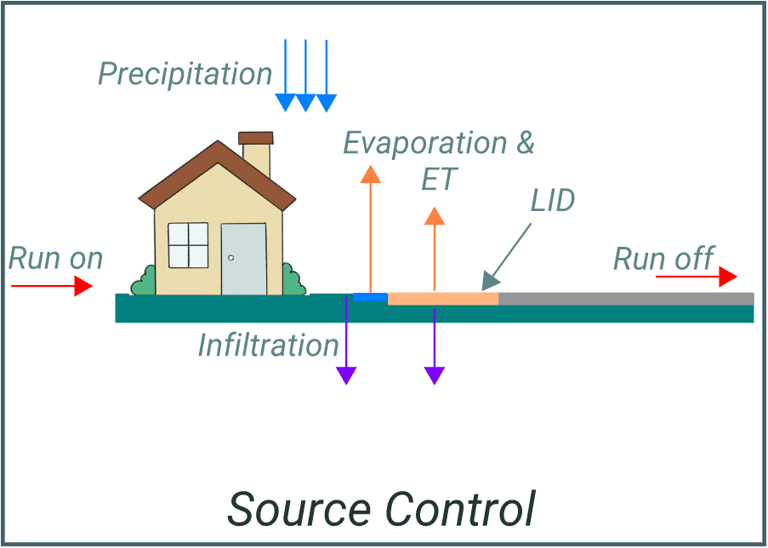

Source Control: Reducing Runoff at the Origin

Source control focuses on minimizing stormwater runoff where it begins—at homes, streets, parks, and other developed areas. By addressing runoff at the source, the overall burden on drainage systems is reduced, making downstream management easier and more effective.

One of the most impactful methods of source control is integrating low impact developments (LIDs). This approach mimics natural processes to absorb and filter rainwater, allowing it to soak into the ground instead of immediately entering storm drains. Common LID techniques include:

• Rain Gardens: Specially designed gardens that capture runoff from rooftops, streets, and parking lots. They are planted with native vegetation, which filters pollutants while encouraging water infiltration.

• Bioswales: Shallow, vegetated channels that guide stormwater while allowing it to seep into the soil. They are often used alongside roads and parking lots to manage runoff in a natural way.

• Permeable Pavements: Unlike traditional asphalt or concrete, permeable pavements allow water to pass through, reducing surface runoff. They are ideal for parking lots, sidewalks, and driveways.

By implementing these solutions, urban areas can reduce the volume of stormwater or at least delay the timing of stormwater entering conveyance systems, decreasing the likelihood of flooding and reducing the strain on infrastructure.

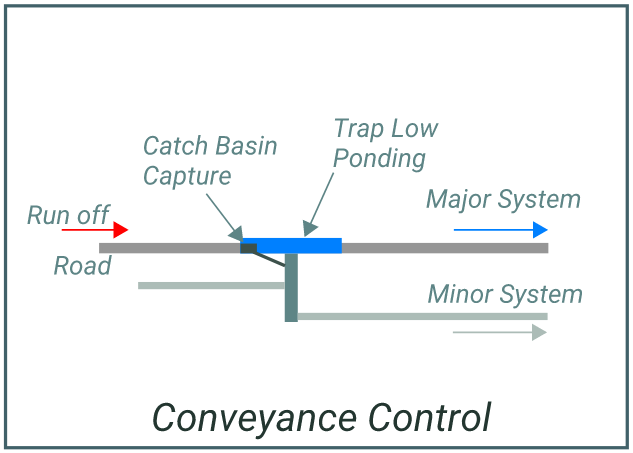

Conveyance Control: Safely Moving Stormwater

While source control is effective at reducing the initial volume of stormwater, conveyance control is necessary for safely transporting runoff from its source to discharge points. This system ensures that stormwater is efficiently moved through infrastructure, especially during high rainfall events.

Conveyance systems are typically divided into two parts:

• Minor Systems: These underground pipe networks are designed to handle low-flow or everyday stormwater events. They are responsible for carrying smaller amounts of runoff to outfalls, preventing localized flooding during light rainfalls. Stormwater enters the minor system through catch basins (CBs) which can also have inlet control devices (ICDs) to restrict inflow to protect the pipe network.

• Major Systems: For larger, more intense storm events, major systems are employed to handle overflow. These overland flow networks—such as streets, channels, and ditches—move excess water that the minor system cannot accommodate. Street trap low storages offer local storage which helps regulate both minor system entry (by way of ICDs located within catch basins within the trap lows) and manage major system flow regimes.

The dual nature of these systems ensures that stormwater is properly managed, regardless of the intensity of the event. Conveyance control not only reduces the risk of urban flooding but also ensures that stormwater is routed to treatment systems or safe discharge points.

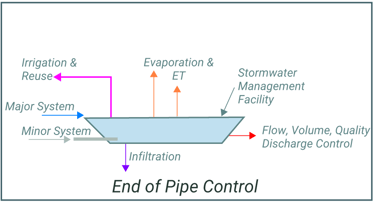

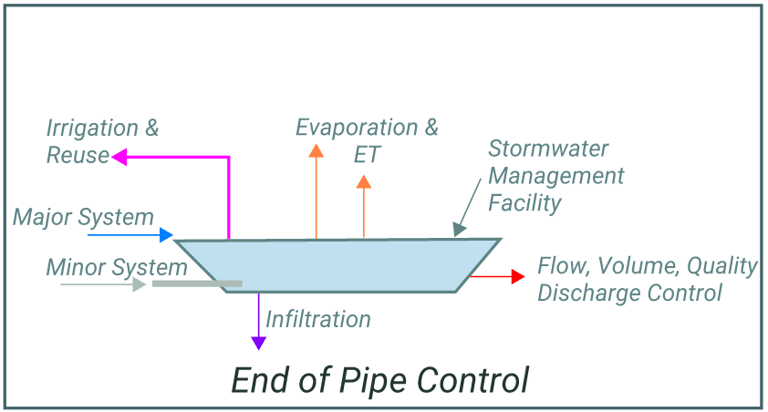

End-of-Pipe Control: Treating Runoff Before Release

Once stormwater has been conveyed through the system, end-of-pipe controls come into play. This stage involves storing, filtering, and releasing stormwater in a controlled manner. End-of-pipe control systems are typically designed to allow pollutants to settle out before the water is released into rivers, lakes, or other natural bodies of water.

Common end-of-pipe control solutions include:

• Wet Ponds: Permanent bodies of water that hold stormwater long-term. These ponds allow pollutants to settle to the bottom while the water is slowly released. They also provide a habitat for wildlife, contributing to urban biodiversity.

• Dry Ponds: Unlike wet ponds, dry ponds only hold water temporarily. After a storm, they capture excess runoff and allow it to gradually infiltrate the ground or be released over time. Dry ponds are often used in areas with limited space for permanent water bodies.

• Constructed Wetlands: These engineered ecosystems are designed to treat stormwater using plants and soil to filter out contaminants. They combine natural processes with human-made structures, creating a sustainable way to clean stormwater.

• Hybrid Systems: In some cases, stormwater management systems integrate aspects of wet ponds, dry ponds, and wetlands to maximize efficiency. These hybrid systems are particularly useful in areas with variable rainfall patterns or limited space for large, dedicated stormwater ponds.

By holding and treating stormwater before it is released, end-of-pipe controls reduce the impact of urban runoff on local waterways. They are essential for maintaining water quality and protecting ecosystems from the harmful effects of pollution.

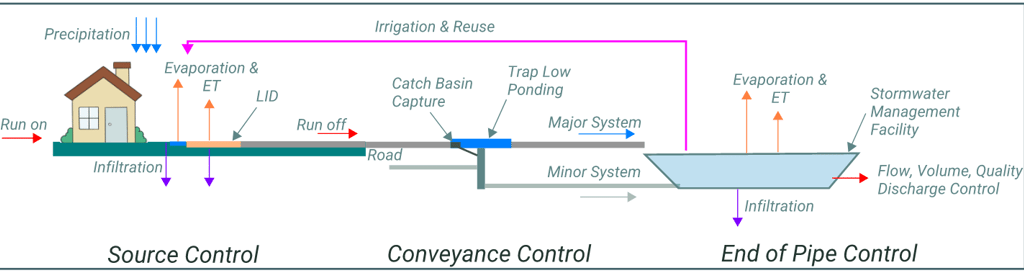

A Multi-Layered Approach to Stormwater Management

Effective stormwater management requires a combination of source control, conveyance control, and end-of-pipe solutions. By reducing runoff at its source, safely transporting it through infrastructure, and treating it before discharge, cities can minimize the risks associated with stormwater, from flooding to pollution.

Investing in diverse stormwater management strategies not only protects communities from the impacts of heavy rainfall but also contributes to a more sustainable urban environment. As climate change continues to influence weather patterns, implementing these techniques will become increasingly important in ensuring the resilience of our cities.
